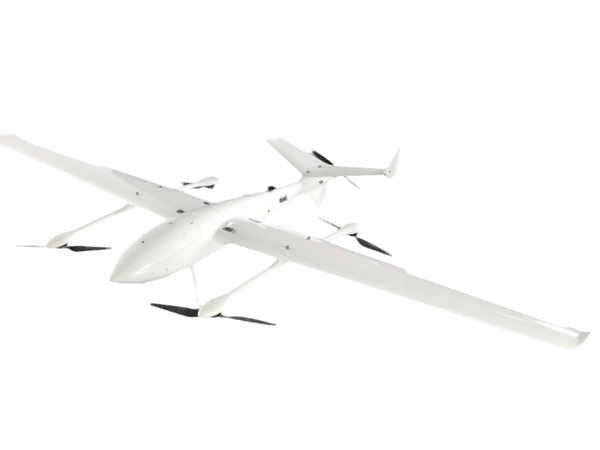

VTOL Fixed-Wing UAV VF-28
VTOL Fixed-Wing UAV VF-28
Powered by electric energy, the VF-28 features a maximum takeoff weight of 28 kg and an unloaded cruising duration of 240 minutes. It has a maximum payload capacity of 5 kg. The rotors are driven by four T-MOTOR MN series motors, paired with T-MOTOR Flame high-voltage electronic speed controllers for enhanced performance. Additionally, the fixed wings are powered by a single T-MOTOR AT series motor, also utilizing a T-MOTOR high-voltage electronic speed controller, ensuring efficient flight operations.
Basic parameter
Overall Dimensions 3.95x1.83x0.57m
Maximum Takeoff Weight 28KG
Maximum Payload Capacity 5KG
Unloaded Endurance Time 240min
Cruise Speed 21m/s
Maximum Takeoff Altitude 4200m
Wind Resistance 10.8 m/s in rotor mode and 13.9 m/s in fixed-wing mode
Protection Rating IP54
Packaging Dimensions 2000mm*650mm*480mm
