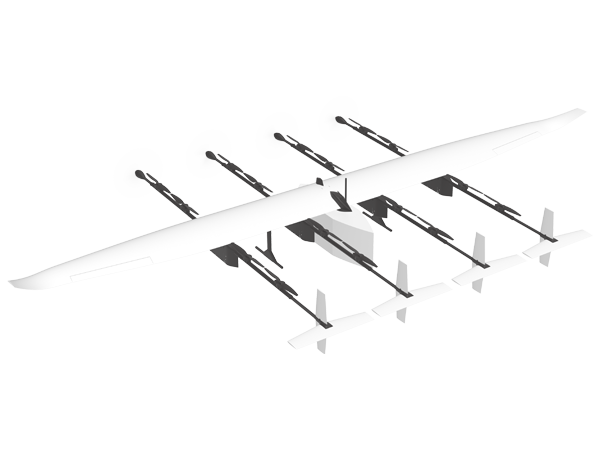

eVTOL Fixed-Wing UAV VF-100
eVTOL Fixed-Wing UAV VF-100
The eVTOL fixed-wing carrier drone has a payload capacity of over 40 kg and a maximum range of 100 km when fully loaded. The drone can be used for material transportation, airdrops, and equipment hang-up tests in plateaus, low-temperature areas, and remote islands with harsh natural conditions.
Basic parameter
Wingspan 6000mm
Length 3300mm
Packaging Dimensions Box 1: 2:70X60X38cm
Box 2: 260X70X75cm
Maximum Takeoff Weight 100kg
Maximum Payload Capacity 40kg
Range 200 km (unloaded), 100 km (with a 50 kg payload)
Economical Cruise Speed 106km/h（29.44m/s）
Practical Ceiling Altitude 6000m
Range of Data Link 30/50/100km (optional)
Remote Control and Image Transmission Delay ≤200ms
Wind Resistance 24.5m/s during cruise flight
Operating Ambient Temperature -20℃~55℃
Rainproof Rating Light rain

Functional characteristics
  • Modular Design: Power systems of different aircraft are interchangeable, increasing the attendance rate.
  • High Safety: With 20 rotors, the drone can safely land even if any two rotors stop functioning.
  • Fully Autonomous Airdrop: Precise airdrops from a height of 1 meter, with a landing error margin of no more than 1 meter.
  • Fuselage-Free Design: Flexible mounting options with minimal restrictions on payload size.
